Play Detector Pit Mounted Hydraulic for Steering and Suspension (MOT C4/7)

This 100% UK-manufactured Steering and Suspension pit-mounted play Detector does not require a lift; it is designed to be used with an inspection pit and comes with a 24-month warranty.

The single-phase control panel neatly mounts to the floor away from the pit area with ducting to carry the hydraulics to the moving plate assembly.  The plate can be mounted to either side of the pit , and the baseplate fits neatly into a pre-fabricated recess.  The innovative single plate design allows movement in both rotational and lateral directions, thus meeting all UK DVSA requirements in a single unit.

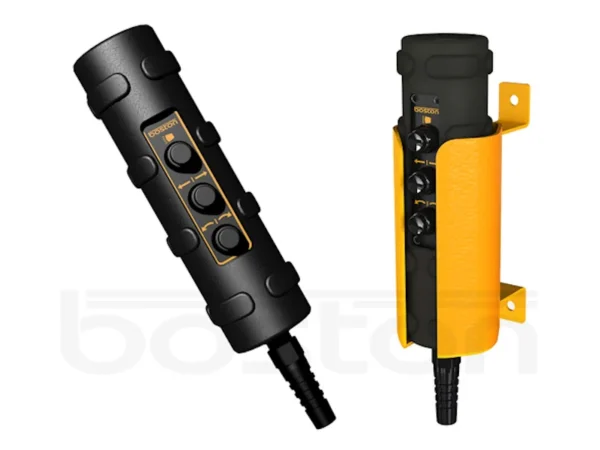

Using either of our two rugged handheld torch controls (wired or wireless), the operator can easily check for wear and play in all steering and load-bearing components.  The PD306 pit version also has an in-pit safety Emergency-Stop button and 24VDC socket for the cabled torch control or inspection lamps.

In addition to the high specification, the PD306 brings manufacturing back to the UK. Designed in-house by our technical design department and manufactured / assembled here at Boston, the PD306 really is high quality engineering at its best

FEATURES & BENEFITS:

• Recess or surface mounted
• Combined lateral and rotational vehicle wheelshift from a single, compact hydraulic power unit
• Significantly exceeds the force, dimensional and functional requirements for UK Class IV and Class VII MoT testing
• Fast one-man inspection of wheel bearing wear and steering linkage components
• High quality, heavy duty hard wired inspection / control torch with the latest LED cluster technology
• Optional RF remote control torch avoids trailing leads for convenient and safer operation
• Auto-repeat function in all lateral and rotational modes
• Auto-zero plate centring
• Optional frame kit for convenient installation in just 52mm deep recess
• ‘In-pit’ connection box with secondary E-Stop and torch connection socket
• Wipe clean attractive controls with integrated LED mode indication (torch control BTC4)
• Single phase operation for quick and simple installation
• 24 MONTHS WARRANTY*

*TERMS & CONDITIONS APPLY
