Description

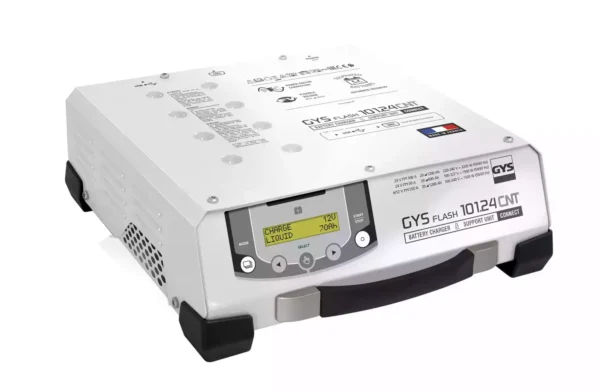

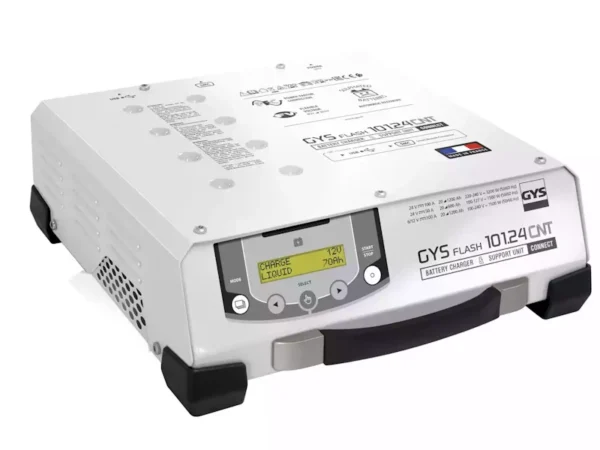

The GYSFLASH 101.24 CNT FV 100Amp Battery Support Unit with 5m Cables from GYS is a 100 Amp Battery Support Unit featuring inverter technology. Ensures stable vehicle voltage during diagnostic testing and software updates by supplying matched current, the user can set the voltage level to meet manufacturer specifications – 12v to 14.8 volts, adjustable in 0.1v increments. It provides everything that is needed for modern workshops, garages and MOT Bays.
The Smart charge function is suitable for 6 V, 12 V, 16 V and 24 V lead-based or lithium batteries (Lithium-ion LFP + Lithium-iron Phosphate LiFePO₄) including EFB & AGM stop/start. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market .e.g. Tesla Model Y that is now fitted with a 16volt Lithium auxiliary battery. The USB connectivity enables charging data to be recorded/retrieved & software updates can be downloaded from the GYS website.
This piece of garage equipment is key for your modern workshops. Invest in this top-quality Starter Charger and take your projects to the next level.
FEATURES & BENEFITS:
- Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium batteries (Lithium-ion «standard» + Lithium-iron Phosphate).
- Specific 8 stage charging curve for lead acid & 9 stage for Lithium batteries, without supervision.
- Recovers deeply discharged batteries >2 V (automatic SOS Recovery).
- Add, delete or modify charging modes and profiles via USB.
- Import predefined configuration files
- Retrieve charging history and data on a USB stick and use them on a spreadsheet.
- Connect additional modules (printer, barcode reader, etc.) via its dedicated SMC: Smart Module Connector.
- Protection of the vehicle’s on-board electronics against short circuits, polarity reversal and overcharging. Plus spark prevention system.
- Temperature sensor to prevent internal electronics overheating.
- Durable case with shock and vibration absorbing pads.
- Low height (13 cm) for use under showroom vehicles.
- 24 MONTHS WARRANTY*
TECHNICAL DATA:
4 Operating Modes:
- Charge: for 6, 12, 16 or 24 V Lead or Lithium batteries from 5 to 1200 Ah.
- Diagnostic + : supports up to 100 A for 12, 16 or 24 V batteries in vehicles in the diagnostic phase, in maintenance workshops.
- Showroom: provides power compensation when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
- Tester: Allows you to check the battery voltage, evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator.
- FV Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.
- «Auto-Detect» function automatically starts a charge when a battery is connected to the charger.
- «Auto-Restart» function in the event of a power failure with memory of last used settings.
- Control Lock, avoids the risk of improper handling, ideal for car showrooms.
