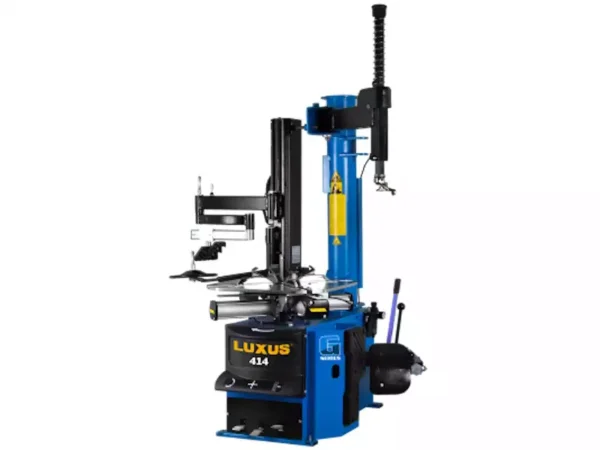

Luxus 414 12V G-Series Tyre Changer 1 phase 240v or 12v
Luxus 414 12V G-Series Tyre Changer dimensions
  1. Luxus 414 12V G-Series Tyre Changer 1 phase 240v or 12v
  2. Luxus 414 12V G-Series Tyre Changer dimensions

Tyre Changer Semi Automatic Luxus 414 G-Series 1 Phase or 12v mobile

Price range: £3,999.00 through £4,999.00 +VAT

Hofmann

Price includes delivery & installation!

Request a Callback
SKU: CGE-Luxus414 Categories: , , Tags: , , Brand:

The Luxus 414 G-Series tyre machine is a compact and neat tyre-changing machine, featuring a space-saving left-hand assist arm and a manual bead press. This tyre machine is suitable for changing vehicle tyres up to 24″.

The Luxus 414 Racing can be supplied in either 1-phase (240V) for garage or MOT Bay use, or a 12V version for mobile tyre changing.

The neat, compact swing-arm design is maintained in order to minimise footprint, but the ability to handle any size rim or tyre isn’t compromised in this extremely heavy-duty model. Boasting a patented QuadraClamp turntable design, and with the option to upgrade to ‘Evo’ leverless operation, the Luxus 414 G-Series is a serious operator in the confines of a mobile fitting van

This equipment is also suitable for operation in a mobile tyre fitting van. Please call us for information on mobile tyre fitting equipment.

FEATURES & BENEFITS:

  • Space-saving left-hand assist arm, with manual bead press.
  • Reinforced chassis.
  • QuadraClamp turntable.
  • 10” to 26” clamping.
  • Leverless Option
  • Fitting head designed for both standard and low-profile tyre applications.
  • ARC Absolute Runflat Compatibility
  • Adjustable bead breaker with extendable arm.
  • Extra-high tower for extra-wide tyres, swinging horizontal arm with 41 mm diameter operating arm.
  • “Easy Access” extractable pedal box for quick service
  • 24 MONTHS WARRANTY*

TECHNICAL DATA:

Operating pressure 8–12 bar (116–174 psi)
Air inlet pressure regulator set at 10 bar 145 psi
Inflating pressure limiter set at 3.5 bar 50 psi
Rim clamping from outside  10″ – 24″
Rim clamping from inside:   12″ – 26″
Max. tyre width 16” (415 mm)
Max. tyre diameter: 43” (1100 mm)
Bead breaker cylinder force @ 10 bar 30800 N (3140 kg)
POWER SUPPLY 240V (1Ph) 50 Hz / 12V DC

*TERMS & CONDITIONS APPLY

For any tyre changer advice please call us today on 01302 203 888 or use the contact form.

Power Supply

1 Phase 240v, Mobile 12v
