This 4-Post Vehicle Service Lift and Wheel Alignment Lift from Concept Garage Equipment has a huge 5-tonne lifting capacity, comes with a 12-month warranty, and is the perfect fit for busy wheel alignment centres and vehicle service centres.
The Low Profile Eurotek 5.7 metre 4 post car lift features a five-tonne lifting capacity which is more than capable of lifting most vehicles with a wheelbase to suit. As standard, the 5.7-metre wheel alignment 4 post car lift comes equipped with an adjustable platform for both wider and narrower vehicles, rear slip plates and front infill plates and adjustable front bearing turn plates for wheel alignment.
Call us on 01302 203 888 if you are unsure or if you need some help or guidance.
FEATURES & BENEFITS:
- 5,000 KG lifting capacity

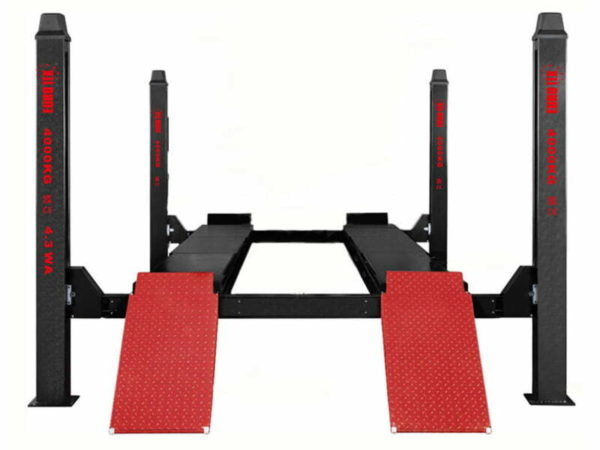

- Width adjustable 5.7-metre platforms.

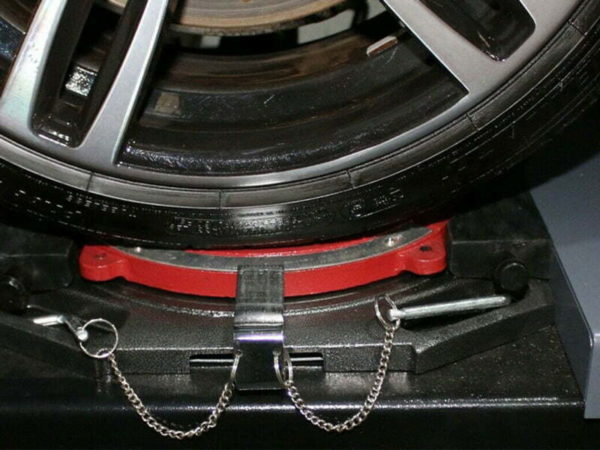

- Adjustable front bearing mounted turn plates

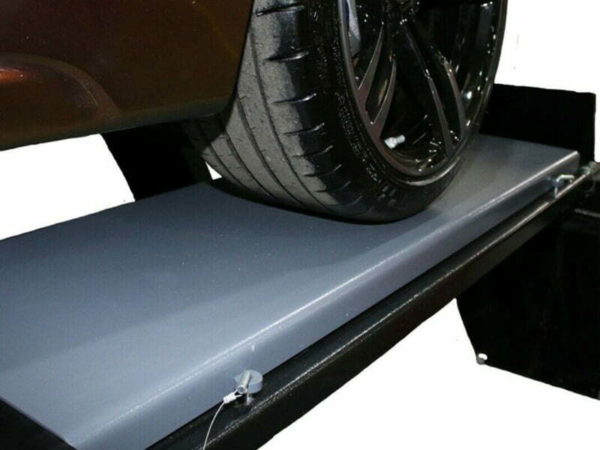

- Recess infills (Front Turn plates if wheel alignment spec)
- X2 PCL air connectors built into platforms
- Available in 1 phase/240v or 3 phase/415v
- 12 MONTHS WARRANTY*
| LIFTING CAPACITY | 5,000 KG |
| PLATFORM LENGTH | 5,700MM |
| DRIVE ON HEIGHT | 180 MM |
| LIFTING HEIGHT | 1,750 MM |
| PLATFORM WIDTH | 600 MM |
| LIFTING TIME | 55 Secs |
| NOISE LEVEL | <70 dB |
| ELECTRICITY SUPPLY | 240V / 415V option |
| MOTOR POWER | 2.2KW |
*TERMS & CONDITIONS APPLY – 12 Months Parts Only Warranty
For any vehicle lift advice please call us today on 01302 203 888 or use the contact form.
| Power Supply | 1 Phase 240v, 3 Phase 415v |
|---|---|

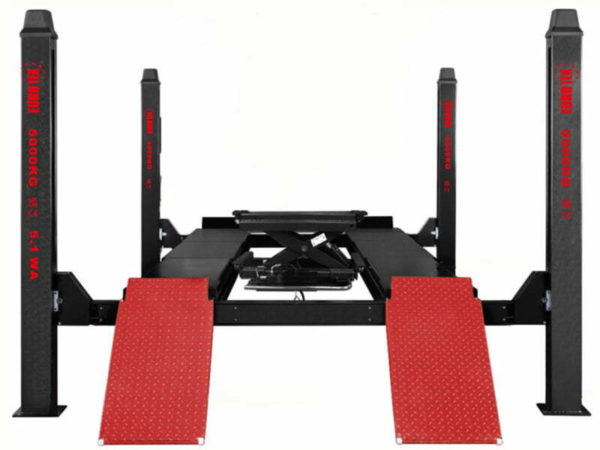

| Jacking Beam | No Jacking Beam, 3 Tonne Manual Jacking Beam, 3 Tonne Air Jacking Beam |
| Installation | Without Installation, With Installation |
