CLASS 1 & CLASS 2 MOT BAYS
Our Class 1 & 2 Mot Bay packages offer everything you need to become a DVSA-approved motorcycle MOT test centre.
Whether you are a standard car or light commercial garage or solely for motorcycles this stand-alone bay offers the best up-to-date DVSA-approved technology.
Your dedicated MOT project manager will advise you on the best layout and position for your garage or workshop. This may be a stand-alone bay at the side of an already existing MOT bay, or you would like to see if adding classes 1 & 2 is an option for your existing MOT bay.
Either way, Concept Garage Equipment is here and ready to help and advise you. Call us on 0113 4690572 or head to our contact us page to get the ball rolling.

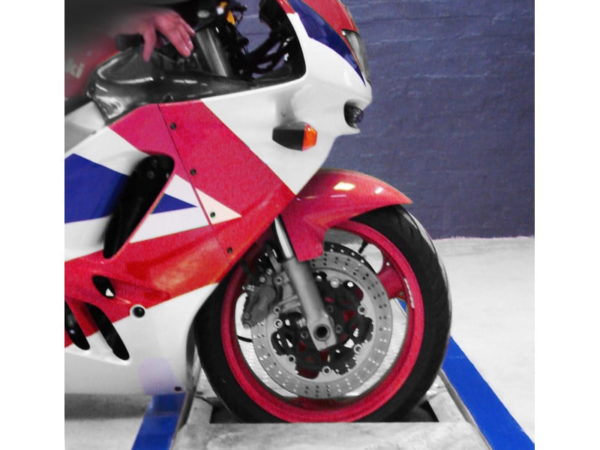

Our Class 1 and Class 2 MOT Bay covers all you need for MOT testing on two-wheel vehicles, including a brake tester incorporating weighing scales, motor soft starters and remote control.
We will issue calibration certificates for the roller brake tester and headlamp beam tester. A 1ph power supply is required for the DE/9015 roller brake tester.
FEATURES & BENEFITS:
- Headlamp Beam Tester (CGE-DE-7288):
- DVSA approved for all classes of MOT testing
- Suitable for testing supplementary beams & fog lamps
- Easy-to-read display screen
- Simple alignment & set-up
- Wheeled option available for general workshop use

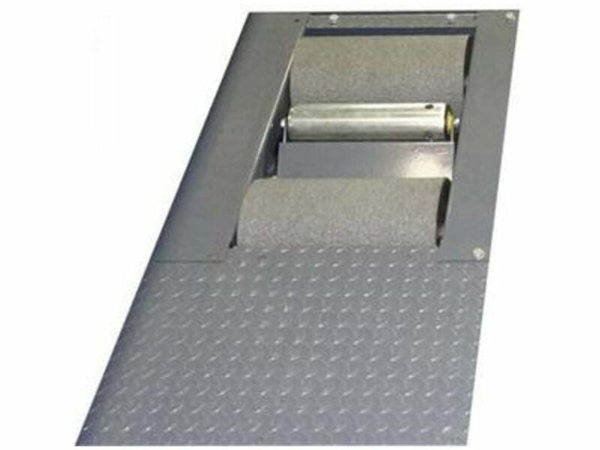

- Motorcycle Roller Brake Tester (CGE-DE-9015)
- Clear LED display
- Flush fitting rollers
- Starting safety device
- Analogue display of brake force
- Automatic zero calibration point
- Approved by DVSA for MOT application
- Accurate, consistent and reliable results
- Easy to use with remote control and automatic calculations throughout the test
- Automatic built-in 4-point weighing system for accurate calculations
- Digital display of maximum brake force, bike weight and retardation etc.
- Unique large wheel slip roller to accommodate off-road tyres better
- Epoxy corundum-coated rollers
- Easy drive-out mode
- Stop/start manual control button on the display
- Manual emergency stop button built in on display
- Low-speed rollers to avoid ‘kick-out’
- Pedestal-mounted display option available
- Roller covers to meet Health & Safety requirements
CLASS 1 & 2 MOT BAY PACKAGES INCLUDE:
- Motorcycle Roller brake tester
- Headlamp beam tester
- Alignment bars and cords
- MOT ancillary pack including tool board
- Full project management Including CAD drawing, Site plans & DVSA application
ACCESSORIES:
- Mini Plus Electronic decelerometer with triaxial measurement (motorcycle)
- Class 1 & 2 MOT accessory & sign pack
OPTIONAL EXTRAS:
- Pedestal for brake tester display
- Motorcycle brake tester installation box
- Beam tester upgrade to laser type and RS232 connectivity
- Motorcycle scissor lift
- Paddock stands
- Groundworks
HEADLAMP BEAM TESTER TECHNICAL DATA (CGE-DE-7288):
| Power | 1ph, 240v/50Hz, 25a |
| Roller length | 300mm |
| Motor | 2.2kW |
| Roller distance | 400mm |
| Test speed | 2.9Km/h |
| Roller diameter | 206mm |
| Brake force range | 0 – 300 kgf |
| Slip roller diameter | 80mm |
| Max. wheel load | 750kg |
| Roller tester weight | 80kg |
| Roller surface friction | 0.9 dry > 0.6 wet |
| Display dimensions | 680 x 680 x 120mm |
| Wheel slip sensing | Autostop |
| Chassis dimensions | 800 x 620 x 310mm |
MOTORCYCLE BRAKE TESTER TECHNICAL DATA (CGE-DE-9015):
| Power | 1ph, 240v/50Hz, 25a |
| Roller length | 300mm |
| Motor | 2.2kW |
| Roller distance | 400mm |
| Test speed | 2.9Km/h |
| Roller diameter | 206mm |
| Brake force range | 0 – 300 kgf |
| Slip roller diameter | 80mm |
| Max. wheel load | 750kg |
| Roller tester weight | 80kg |
| Roller surface friction | 0.9 dry > 0.6 wet |
| Display dimensions | 680 x 680 x 120mm |
| Wheel slip sensing | Autostop |
| Chassis dimensions | 800 x 620 x 310mm |

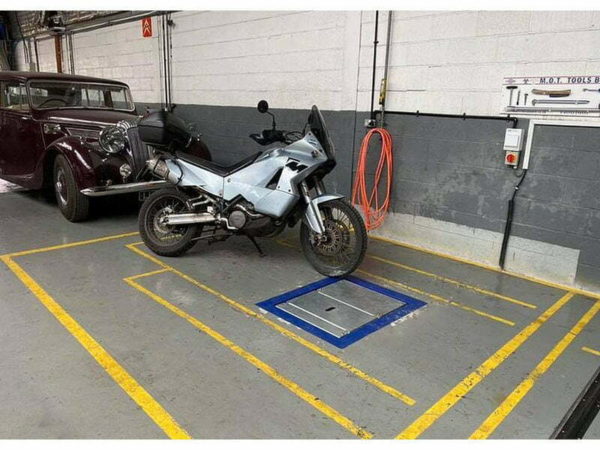

NOTE: MOT Bay image is shown for illustration purposes only and may not represent exactly the MOT Bay described
