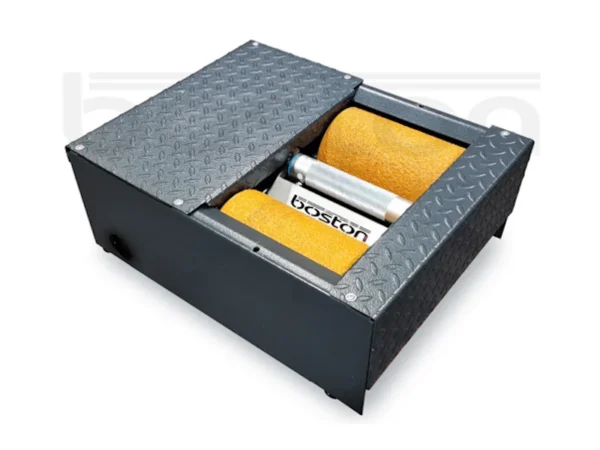

Roller Brake Tester (RBT) Class 1 & 2 Motorcycle – DVSA-Approved
Call Now For Prices
DVSA-Approved Motorcycle Brake Tester | Professional Class 1 & 2 Roller Brake Tester.
This motorcycle brake tester (Class 1 & 2) from Concept Garage Equipment covers all your needs for testing brakes on two-wheeled vehicles.
Deliver unparalleled accuracy with our high-performance Motorcycle Brake Tester. Specifically designed and DVSA-approved for all UK MOT testing stations, this premium Roller brake tester is the essential equipment for verifying the braking performance of two-wheeled vehicles.
Engineered to cover all legal and DVSA requirements for Class 1 brake tester and Class 2 brake tester vehicles (motorcycles, mopeds, and scooters), this unit combines rugged European build quality with the latest PC-controlled software, ensuring you deliver efficient, accurate, and repeatable test results every time. It’s the definitive Class 1&2 roller brake tester solution engineered to streamline your MOT bay operations.
Our advanced Class 1 roller brake tester comes packed with features to maximise efficiency and future-proof your investment.
MOTORCYCLE BRAKE TESTER FEATURES & BENEFITS:
- DVSA Approved: Fully compliant and approved for use in UK MOT testing bays for both Class 1 and Class 2 vehicles.
- Built-in Weighing System: Features a highly accurate four-point built-in weighing system essential for the automatic calculation of brake efficiency and total vehicle weight.
- Connected Ready: Equipped with the latest PC-controlled operating software and communication protocols, making it ‘Connected Equipment’ ready should the DVSA implement the requirement.
- Advanced Testing Capabilities: Effortlessly tests motorcycles, scooters, mopeds, and vehicles with sidecars. Automatically checks for wheel/brake ovality (eccentricity) and calculates brake efficiency.
- Bi-Directional Rollers: Rollers operate in both directions, allowing for flexible operational placement and simple manoeuvring in workshops of any size.
- Remote Control Operation: Complete your tests with ease using the included Bluetooth 5 Long-Range Remote Control.
- Extended Warranty: Benefit from a market-leading 24 MONTHS WARRANTY on the main chassis, and 60 MONTHS WARRANTY on the roller surface*
TECHNICAL DATA:
| Approved MOT Class | Class 1 & Class 2 |
| Power: | 1 phase 230 V / 50 Hz / 16 A |
| Motor: | 1.5 kW – Dual Directional |
| Electronics: | PC Controlled – SW900iV |
| Testing Speed: | 3.6 km/h |
| Weighing System: | 4 Point |
| Max Brake Force: | 400 kgf |
| Max Wheel Load: | 1000 kg |
| Chassis Dimensions: | 800 x 620 x 310 mm |
| Roller Width: | 300 mm |
| Roller Centre Dimensions: | 385mm |
| Friction Roller Surface: | 0.8µ dry / 0.6µ wet |
| Display Dimensions: | 27″ Display Monitor (secondary optional) |
| Communication: | USB |
| Operator Control: | RFC-96 Bluetooth 5 Remote Control |
| Warranty: | Chassis: 2 Years / Roller Surface: 5 Years |
*TERMS & CONDITIONS APPLY
