Description

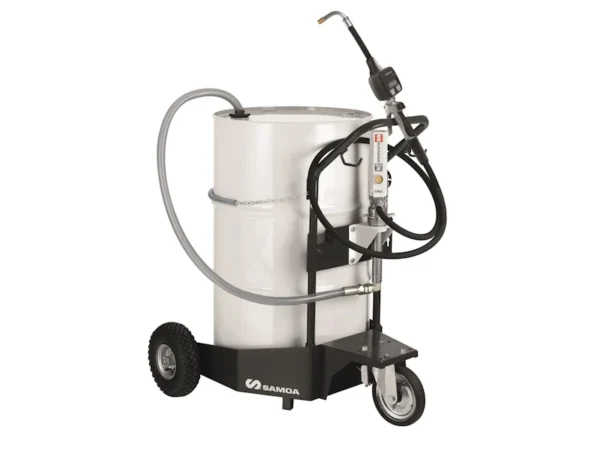

This is the SAMOA Pumpmaster 2 – 3:1 Ratio Drum Trolley Mounted mobile oil dispenser, Air Operated with a Digital Hose End Meter for 205 Litre Drums, with a convenient Pump Bracket. A superb sturdy quality oil dispenser from this leading supplier of oil pumps, fluid storage and dispensing equipment, supplied with a 12-month warranty.
A double-acting air-operated medium-pressure pump for dispensing lubricants from mobile units, oil distribution packages and small systems. Pumps include a 2″ BSP (M) height adjustable bung adaptor for tank or drum bung mounting. Built-in port for optional pressure relief valve.
Package includes:
- 1 x Pumpmaster 2 – 3:1 Air Operated Oil Pump for 205 Litre Drum (stub type)
- 1 x Pump bracket
- 1 x Digital hose end meter
- 1 x 3m x 1/2″ delivery hose
- 1 x Suction hose
- 1 x Trolley
FLUIDS HANDLED
- Synthetic and mineral-based lubricants
- Hydraulic oil
- Gear oil
- Transmission fluid
FEATURES & BENEFITS:
- Exceptional Quality
- Air Operated Oil Pump with Pump bracket
- Metered Transfer with Digital Hose End Meter
- Approximate Delivery: 12 litre/min(1)
- 12 MONTHS WARRANTY*
(1) Delivery with SAE30 oil at 7 bar inlet pressure and 20°C temperature.
TECHNICAL DATA:
| Pump pressure ratio | 3:1 |
| Air pressure operating range | 1.5 – 10 bar (20 to 140 psi) |
| Air consumption(1) | 180 NL/min (6.4 cfm) |
| Maximum fluid outlet pressure | 30 bar (420 psi) |
| Air motor diameter | 51 mm (2″) |
| Air motor effective diameter | 35 mm (1.4″) |
| Air motor stroke | 75 mm (3″) |
| Delivery at 200 cycles/min. | 10 l/min (2.7 Gal/min) |
| Maximum free flow delivery(2) | 35 l/min (9.3 Gal/min) |
| Air inlet | 1/4″ BSP (F) |
| Fluid inlet (short pump only) | 3/4″ BSP (F) |
| Fluid outlet | 1/2″ NPSM (F) |
| Wetted and seal materials | Aluminium / Steel / NBR / PTFE |
| Noise level(3) | 80 dB |
(1) Air consumption with 6 bar air inlet pressure and 200 cycles per minute.
(2) Maximum free delivery at 7 bar.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
*TERMS & CONDITIONS APPLY.
