Description

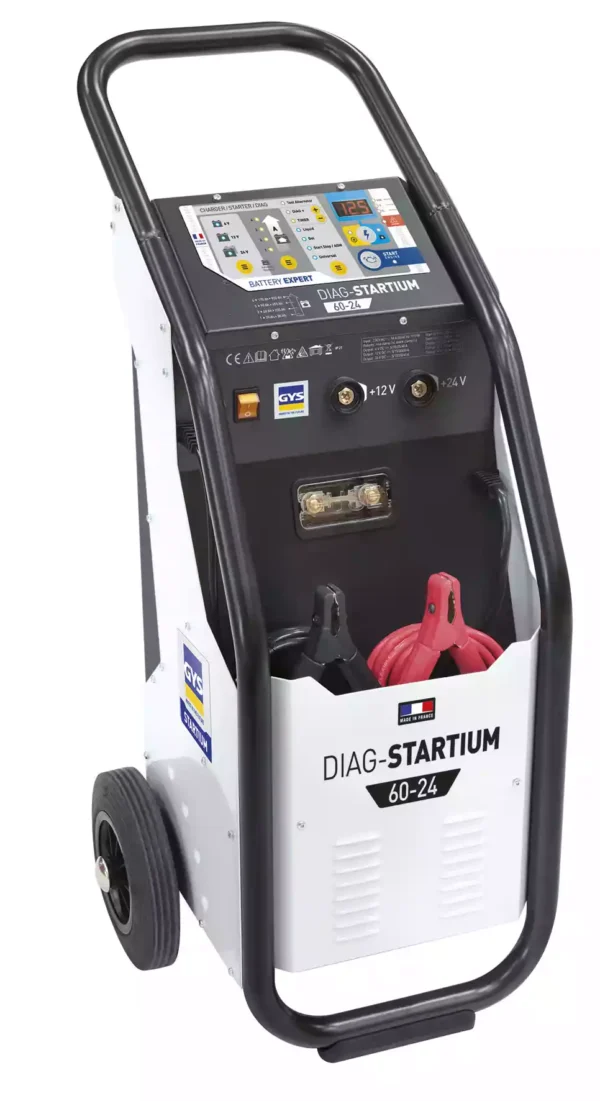

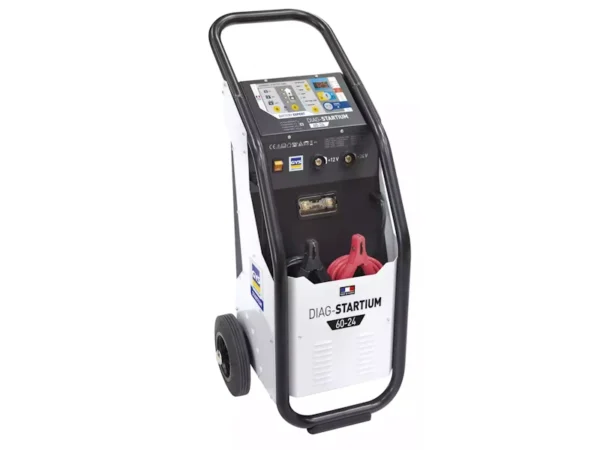

The DIAG-STARTIUM 60-24 from GYS is an automatic starter/charger for all types of lead batteries (liquid, gel, AGM, EFB, Calcium, etc.) at 6v, 12v and 24v. It is a 3 in 1 advanced battery maintenance system providing everything that is needed for modern workshops, garages and MOT Bays.
This powerful starter charger generates a starting power of 300 A at 12 V and 280 A at 24 V and recharges and regenerates heavily discharged batteries (SOS Recovery). Batteries with a 20 to 900 Ah capacity at 6 / 12 V and 20 to 525 Ah at 24 V can be recharged to 100%. It meets energy requirements during diagnostic phases (up to 60 A) with the “DIAG+” function and quickly identifies any faults in the vehicle’s charging circuit thanks to the “alternator test” mode. The space for cables, clamps, integrated wheels, and handles for easy transport help keep your workshop tidy and organised.
This piece of garage equipment is key for your modern workshops. Invest in this top-quality Starter Charger and take your projects to the next level.
FEATURES & BENEFITS:
- TIMER: Function which permits safe charging when charging deeply discharge batteries (< 1V).
- Charge all battery types: Select the charging curve for the battery type – Liquid, Gel, AGM – or if this is not known select the Universal Mode which will ensure a safe change for any of these battery types.
- Charge to 100% safely: The advanced multi-stage charger will charge to 100% and does not require supervision or the battery to be removed from the vehicle. At the end of the charge the charger enters a float mode to maintain the battery at 100%.
- Intelligent: This device permanently analyses the health of the battery and automatically adjusts the output voltage. The voltage and the percentage of charge are displayed in real time on the digital screen.
- Protection of on-board electronics: No need to disconnect the battery from the vehicle. No risk of sparks, there is no voltage to the clamps when they are not connected to a battery.
- Auto restart defaults to the last settings used in event of a power cut.
- Alternator test function to aid fault finding.
- Fault codes displayed on the digital screen for simple troubleshooting.
- 24 MONTHS WARRANTY*
TECHNICAL DATA:
- SOS RECOVERY: Enables the recovery of sulphated batteries.
- Automatic start: A high power starter with advanced protection for vehicle electronics. It will automatically start sending current to the battery when the starter function of the car is being activated. A remote control is no longer required.
- Smart start: The DIAG-STARTIUM will automatically detect damaged or badly sulphated batteries. In this event, it will not deliver current in order to protect the vehicle electronics.
- Battery support (12v only): DIAG-STARTIUM 60-24 provides up to 60A support during diagnostic work. Select the DIAG+ function to set the voltage level (range 12-15V) to meet the manufacturer’s requirements.
- Deep Discharge: The DIAG-STARTIUM can charge batteries discharged to as low as 1v. This is not possible if the battery is damaged.
*TERMS & CONDITIONS APPLY
For any Starter Charger advice please call us today on 0113 469 0572 or use the contact form.
