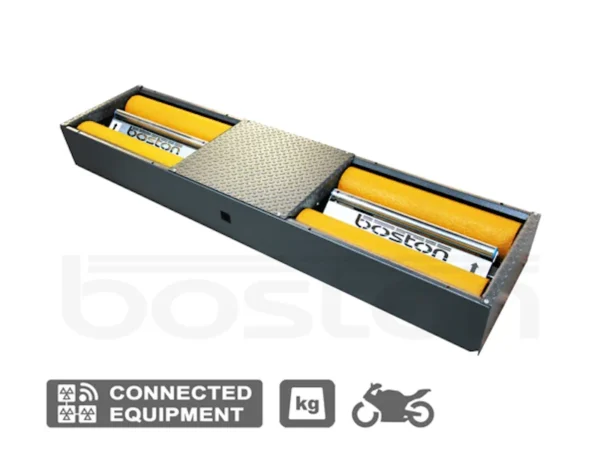

Roller Brake Tester (RBT) Class 7

This is a 4.5 Tonne 3 Phase Class 4 MOT Bay Roller Brake Tester from market leaders Boston Garage Equipment.

All MOT and ATL brake testers that we sell are MOT-approved and PC based, suitable for connection to DVSA. The results are calculated and stored, and the test procedure is in full compliance with the latest regulations.

This roller brake tester unit consists of a hot-dipped galvanised chassis fitted with rollers with durable, gritted roller surfaces for high friction coefficient. The motors are connected to the rollers via worm gears. These hold the rollers firm when the power is switched off and make it easy to get the drive wheels out of the rollers. The brake force is measured with a strain gauge transducer. The roller unit is fitted with sensors that detect the presence of a wheelset on the rollers.

This system ensures that the rollers do not start accidentally. A speed sensor measures the wheel speed and the roller speed to ensure that the percentage of slippage is correct. The point of the wheel lock can be set at four different settings.

---

DVSA Connected Class 7 Brake Tester for Maximum Efficiency

The Boston D712 is a revolutionary MOT roller brake tester engineered for the heavy demands of Class 7 MOT Bay brake testing. Fully DVSA Connected MOT Equipment Approved, this robust unit delivers fast, precise, and efficient brake testing for a wide range of goods vehicles over 3.5T. If you are searching for a reliable, feature-packed Class 7 brake tester that minimises downtime and streamlines your MOT bay, the D712 is the definitive choice.

As the leading roller brake tester on the market, the D712 is built to endure, combining a heavy-duty commercial 4,500kg load capacity with an industry-leading 5-year guarantee on the rollers.

---

Flexible Configuration & Seamless Integration

The D712 roller brake tester is designed for adaptability. While excelling as a standalone unit for traditional bays, it can be easily upgraded with a vehicle weighing system to be used in DVSA-approved Automated Test Lanes (ATL) or for dedicated motorcycle testing.

Furthermore, this MOT roller brake tester package can be effortlessly combined with our emissions equipment to create a complete, integrated brake tester and emissions testing system. Multiple control system layouts (GCP3 and GCP4) are available to perfectly match the unique requirements of your premises.

Simply put, when you choose the D712, you are selecting the most robust and feature-packed brake tester available for any Class 7 MOT Bay.



CLASS 7 MOT BAY ROLLER BRAKE TESTER FEATURES & BENEFITS:

• DVSA Approved as Connected MOT Equipment
• Galvanised and painted roller bed chassis
• Roller surface guaranteed for 5 years
• Installation cartridge galvanised and painted
• Single bed symmetrical chassis
• Very latest DVSA ATL software
• Built-in remote assistance (internet connection required)
• Every official test automatically saved
• Emissions software included as standard
• Decelerometer software included as standard
• 4WD testing included as standard
• High quality RFC-96 remote control (50m+ range)
• 27″ flat panel LED display (touch screen optional)
• 50″+ secondary display (optional)
• Motorcycle testing compatible (optional)
• All software and electronics made in UK
• 24 MONTHS WARRANTY, 60 MONTH ROLLER WARRANTY*

Power (Full Load):	3ph 400V / 50 Hz / 32A
Motors – 3ph:	2 x 4.0 kW
Electronics:	USB Interface – PC Controlled
Brake Testing Speed:	2.9 km/h
Roller Bed(s) Weight and Build:	510 kg – Fully Galvanised and Painted
Max. Brake Force (per wheel):	1450 kgf
Max. Axle Load:	4500 kg
Roller Width:	900 mm
Roller Centres Dimension:	420 mm
Friction Roller Surface:	0.9 μ dry, > 0.6 wet
Roller Bed Chassis Dimensions:	2730 x 660 x 320 mm (L x W x H)
Display Dimensions:	LED Monitor, 27″ standard (larger optional)
Control System:	GCP3 / GCP4 Control Station (Windows 11 + SW900 Software)
Communication:	USB
Operator Control:	Wireless Keyboard / RF Remote Control (50m+ range)
Axle Weighing System:	Optional (D712W)



*TERMS & CONDITIONS APPLY
