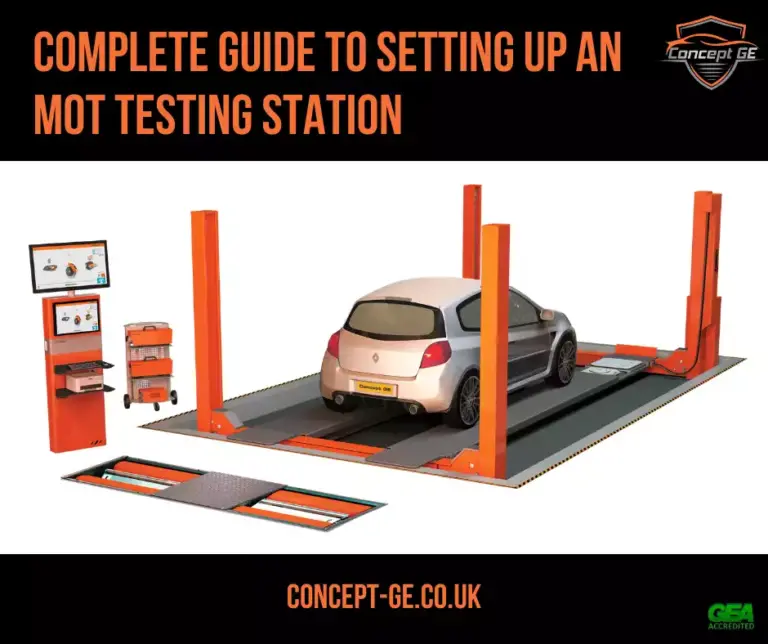

Complete Guide to Setting Up an MOT Testing Station

Opening an MOT testing station can be one of the most profitable investments a garage makes. Whether you are expanding an existing workshop, taking over a former MOT site, or opening a completely new garage, adding an MOT bay helps generate recurring revenue, improves customer retention, and creates additional servicing and repair opportunities.

However, setting up an MOT station involves much more than simply purchasing an MOT lift and applying to the DVSA. From workshop layout and equipment selection to VT01 applications, connected equipment requirements and final DVSA approval, several important stages must be completed correctly.

This guide explains everything you need to know about setting up an MOT testing station in the UK, including the equipment required, the DVSA approval process, workshop planning, training requirements and common mistakes to avoid.

Is Opening an MOT Testing Station Worth It?

For many independent garages, MOT testing provides a reliable and consistent income stream throughout the year. More importantly, MOTs create additional repair and servicing opportunities that can significantly increase workshop revenue.

Benefits of operating an MOT centre include:

• Increased customer retention
• Additional servicing and repair work
• Improved workshop utilisation
• New local customer acquisition
• Greater business credibility
• Increased workshop income and profits

Understanding MOT Bay Classes

One of the first decisions when setting up an MOT testing station is determining which class of vehicle you intend to test.

Class 1 & 2 MOT Bays

Class 1 and Class 2 MOT Bays cover the bulk of 2-wheel motorcycles on the UK roads today. These motorcycle testing bays require brake testing equipment such as a class I & II roller brake tester, headlight testing equipment and a motorcycle scissor lift (this is a recommendation but not a requirement for a motorcycle MOT bay).

Class 4 MOT Bays

Class 4 MOT Bays cover a large percentage of the standard vehicles on the UK roads today, including cars (up to 8 passenger seats), motor caravans, ambulances and taxis. Most independent garages choose to install a Class 4 MOT bay.

Class 7 MOT Bays

Class 7 MOT Bays cover not only the larger goods vehicle MOTs but also a large percentage of the standard vehicles on the UK roads today that are also covered by the Class 4 MOT Bay. Including goods vehicles (over 3,000kg up to 3,500kg design gross weight). Being able to MOT both Class 4 and Class 7 vehicles makes a Class 7 MOT Bay a worthwhile investment and a very flexible MOT Bay to own.

For more information about classes of MOT bays, read our blog post: https://concept-ge.co.uk/what-are-the-classes-of-mot-bay/

Which is Best, a Lift or an Inspection Pit?

Many garages ask whether they should install an MOT lift or an inspection pit. The right choice depends on factors including budget, workshop size, vehicle types and technician preference.

Advantages of an MOT Lift include:

• Easier access under the vehicle
• Can be a faster installation
• Better workshop flexibility
• Can be moved if you expand or change premises

Advantages of a pit include:

• Lower running costs
• Durable, low maintenance
• Can suit heavy-use environments

At Concept Garage Equipment, we help garages choose the most practical and cost-effective solution for their premises.

Step-by-Step Guide to Setting Up an MOT Testing Station

1. Initial Site Survey & Assessment

The first stage is a detailed workshop assessment. During the site visit, measurements are taken to determine whether the premises are suitable, which equipment will fit correctly, the groundwork requirements and access considerations. This stage is extremely important because errors in workshop planning can create costly delays later in the process.

2. Choosing Your MOT Equipment

When choosing your MOT equipment, you will consider factors including budget, workshop layout and future expansion plans.

A typical MOT bay may include:

• 4 post lift or scissor lift
• Inspection pit
• Roller brake tester
• Headlamp beam tester
• Gas analyser
• Smoke meter
• Decelerometer
• Jacking beam

2. Connected MOT Equipment

DVSA now requires many MOT stations to use connected MOT equipment. Connected equipment automatically communicates test results directly with the DVSA MOT Testing Service (MTS), helping improve accuracy and compliance.

3. MOT Workshop Layout & Design

Workshop layout has a major impact on workflow efficiency, technician productivity and DVSA compliance. The aim is to maximise usable workshop space while remaining fully compliant with DVSA testing requirements.

4. CAD Drawings & Site Plans

Before submitting your VT01 application, you will need CAD workshop drawings, site plans and equipment positioning layouts. These drawings show measurements of both the available space and the MOT equipment that will be fixed in place.

5. Completing the VT01 Application

DVSA VT01 form must be completed to apply to set up or change an MOT test station, including becoming an Authorised Examiner (the person or business that runs it).

You will need:

• A solicitor’s letter
• A basic Disclosure and Barring Service check (DBS)
• A Computer-Aided Design (CAD) for your garage or workshop
• Site plan

Before you start to fill in your VT01 form you will need to set up an account on the DVSA MOT Testing Service system (MTS).

Once it’s submitted the DVSA will look at the application and if everything is correct then it will be passed to your local Vehicle Examiner (AE). They will then issue you with an Agreement in Principle (AIP). This authorises you to commence with your project and the installation of the MOT equipment.

For detailed information on completing the VT01 form, read our blog post: https://concept-ge.co.uk/vt01-form-setting-up-an-mot-test-station/

6. Electrical Works & Groundworks

Depending on the premises, additional contractor work may be required. This can include electrical work, pit construction and lighting upgrades.

7. AEDM & MOT Tester Training

Every MOT station must appoint an Authorised Examiner Designated Manager (AEDM). The AEDM is responsible for MOT compliance, quality control and DVSA standards. The nominated individual must complete the appropriate training course. You will also need qualified MOT testers before commencing testing operations.

8. MOT Equipment Installation & Calibration

Once DVSA issues Agreement in Principle (AIP), installation can begin.

Concept Garage Equipment can supply everything you need from MOT tools through to the lift, inspection pit, gas analyser, headlight tester and anything else that is required for the class of vehicles you plan to be MOT testing. We can supply electricians, and builders and/or liaise with any other services or providers of your choice to ensure the installation gets done without a hitch. You can be involved as much or as little as you would like, you will, of course, be consulted throughout the process to ensure you are happy with every aspect of the MOT bay that is being constructed, and to check for any requested changes you require as it is being done.

Once installed and calibrated, we can also arrange for staff MOT training, so that all existing or new staff who will be doing MOT testing are suitably qualified and trained and familiar with your new MOT Bay equipment.

9. VT01-D & Final DVSA Inspection

After installation is complete, the next stage is submitting the VT01-D form. This requests the final DVSA inspection visit. During the inspection, the Vehicle Examiner (VE) checks:

• Equipment installation
• Dimensions
• Documentation
• Compliance standards
• Equipment operation

If everything meets requirements, the MOT station receives approval to commence testing.

10. Commencing MOT Testing

Once approved, your MOT bay is authorised to begin testing vehicles. Now that you can perform MOT tests, you can generate additional workshop revenue and expand servicing and repair work. For many garages, this is the point where the investment quickly starts paying back.
